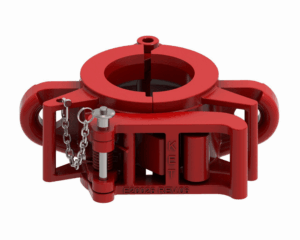

The Keystone SJ series is a single-joint elevator is rated for 7.5 tons. The elevator can be bored to accommodate 18 degree tapered drill-pipe or square-shoulder casing and tubing.
We design and precision-machine all of our elevators to meet and exceed API Standards, with KET and the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
Our elevators include Safety Latch Lock Pins – designed to keep the elevator’s safety latch locked in place, preventing the elevator from being accidentally released
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Line of Single Joint Elevators
SJ-35
| Model | Tons | Range |
|---|---|---|
| SJ-35 | 7.5 | 2 3/8″ – 4″ |
SJ-35 REPLACEMENT PARTS
| Part# | Qty | Item | Description | |
|---|---|---|---|---|
| E20026 | 1 | 1 | LATCH | Add to Quote |
| E39-050 | 1 | 2 | LATCH PIN | Add to Quote |
| E39-034 | 1 | 3 | LATCH SPRING | Add to Quote |
| E39-051-8 | 1 | 4 | LATCH LOCK PIN ASSY. | Add to Quote |
| E39-052 | 1 | 5 | HINGE PIN *Comes with grease zert item 6* | Add to Quote |
| N/A | 1 | 6 | GREASE ZERT | Add to Quote |
| E39-051-8 | 1 | 7 | 1 1/4″ X 3/16″ ROLL PIN | Add to Quote |
| P316RP | 1 | 8 | 1 1/4″ X 3/16″ ROLL PIN | Add to Quote |
SJ-30
| Model | Tons | Range |
|---|---|---|
| SJ-30 | 7.5 – 12 | 4″ – 5 7/8″ |
SJ-30 REPLACEMENT PARTS
| Part# | Qty | Item | Description | |
|---|---|---|---|---|
| E20026 | 1 | 1 | LATCH | Add to Quote |
| E39-050 | 1 | 2 | LATCH PIN | Add to Quote |
| E34568 | 1 | 3 | SJ SWIVEL SUSPENSION ASSEMBLY | Add to Quote |
| E7829-1 | 1 | 4 | LATCH SPRING | Add to Quote |
| E39-051-8 | 1 | 5 | LATCH LOCK RETAINER PIN ASSEMBLY | Add to Quote |
| E39-052 | 1 | 6 | HINGE PIN *COMES WITH GREASE ZERT* | Add to Quote |
| E316-TI | 1 | 8 | TAP IN GREASE FITTING | Add to Quote |
| E316RP | 1 | 9 | LATCH PIN RETAINER (SAME AS HINGE) | Add to Quote |
| E316RP | 1 | 10 | HINGE PIN REATAINER (SAME AS LATCH) | Add to Quote |
SJ
| Model | Tons | Range |
|---|---|---|
| SJ-30 | 7.5/10/12 | 4″ – 5 7/8″ |
| SJ-40 | 7.5/10/12 | 5 1/2″ – 8 5/8″ |
| SJ-50 | 7.5/10/12 | 9 5/8″ – 10 3/4″ |
| SJ-60 | 7.5/10/12 | 11 3/4″ – 14″ |
| SJ-65 | 7.5/10/12 | 18″ – 22″ |
SJ REPLACEMENT PARTS
| Part# | Qty | Item | Description | |
|---|---|---|---|---|
| E20026 | 1 | 1 | LATCH | Add to Quote |
| E39-050 | 1 | 2 | LATCH PIN | Add to Quote |
| E34568 | 1 | 3 | SJ SWIVEL SUSPENSION ASSEMBLY | Add to Quote |
| E7829-1 | 1 | 4 | LATCH SPRING | Add to Quote |
| E39-051-8 | 1 | 5 | LATCH LOCK RETAINER PIN ASSEMBLY | Add to Quote |
| E39-052 | 1 | 6 | HINGE PIN *COMES WITH GREASE ZERT* | Add to Quote |
| E316-TI | 1 | 8 | TAP IN GREASE FITTING | Add to Quote |
| E316RP | 1 | 9 | LATCH PIN RETAINER (SAME AS HINGE) | Add to Quote |
| E316RP | 1 | 10 | HINGE PIN REATAINER (SAME AS LATCH) | Add to Quote |
DL-SJ
| Model | Tons | Range |
|---|---|---|
| SJ-30 | 7.5/10/12 | 4″ – 5 7/8″ |
| SJ-40 | 7.5/10/12 | 5 1/2″ – 8 5/8″ |
| SJ-50 | 7.5/10/12 | 9 5/8″ – 10 3/4″ |
| SJ-60 | 7.5/10/12 | 11 3/4″ – 14″ |
| SJ-65 | 7.5/10/12 | 18″ – 22″ |
DL-SJ REPLACEMENT PARTS
| Part# | Qty | Item | Description | |
|---|---|---|---|---|
| E20026-DL | 1 | 1 | LATCH | Add to Quote |
| E20026-LL | 1 | 2 | LATCH LOCK | Add to Quote |
| E39-034 | 1 | 3 | LATCH SPRING | Add to Quote |
| E39-034-LL | 1 | 4 | LATCH LOCK SPRING | Add to Quote |
| E39-050-1 | 1 | 5 | LATCH PIN | Add to Quote |
| E39-050-2 | 1 | 6 | LATCH LCOK PIN & RETAINER | Add to Quote |
| E39-050-3 | 1 | 7 | DOOR LUG PIN & RETAINER | Add to Quote |
| E39-051-8 | 1 | 8 | LATCH LOCK RETAINER PIN, CHAIN, & CLASP | Add to Quote |
| E39-052 | 1 | 9 | HINGE PIN | Add to Quote |
| E316-RP | 2 | 10 | HINGE PIN & LATCH PIN RETAINER | Add to Quote |
| E316-TI | 1 | 11 | HINGE PIN GREASE FITTING | Add to Quote |
SJ-IB
| Model | Tons | Range |
|---|---|---|
| E20030 | 7.5 | 4″ – 5 7/8″ |
| E20040 | 7.5 | 5 1/2″ – 8 5/8″ |
| E20050 | 7.5 | 9 5/8″ – 10 3/4″ |
| E20060 | 7.5 | 11 3/4″ – 14″ |
| E20065 | 7.5 | 16″, 20″ |
SJ-IB REPLACEMENT PARTS
| Part# | Qty | Item | Description | |
|---|---|---|---|---|
| E20026 | 1 | 1 | LATCH | Add to Quote |
| E39-050 | 1 | 2 | LATCH PIN | Add to Quote |
| E34568 | 1 | 3 | SJ SWIVEL SUSPENSION ASSEMBLY | Add to Quote |
| E7829-1 | 1 | 4 | LATCH SPRING | Add to Quote |
| E39-051-8 | 1 | 5 | LATCH LOCK RETAINER PIN ASSEMBLY | Add to Quote |
| E39-052 | 1 | 6 | HINGE PIN *COMES WITH GREASE ZERT* | Add to Quote |
| E316-TI | 1 | 8 | TAP IN GREASE FITTING | Add to Quote |
| E316RP | 1 | 9 | LATCH PIN RETAINER (SAME AS HINGE) | Add to Quote |
| E316RP | 1 | 10 | HINGE PIN REATAINER (SAME AS LATCH) | Add to Quote |
