Keystone Stabbing Guides
KET offers two types of Drill Pipe Stabbing Guides, the Heavy Duty type which is recommended for drill pipe and also the Hydril® rubber type to be used on tubing. Stabbing Guides help to reduce damages to connections while making up connections.
100, 200, & 300 Frame Casing Stabbing Guide

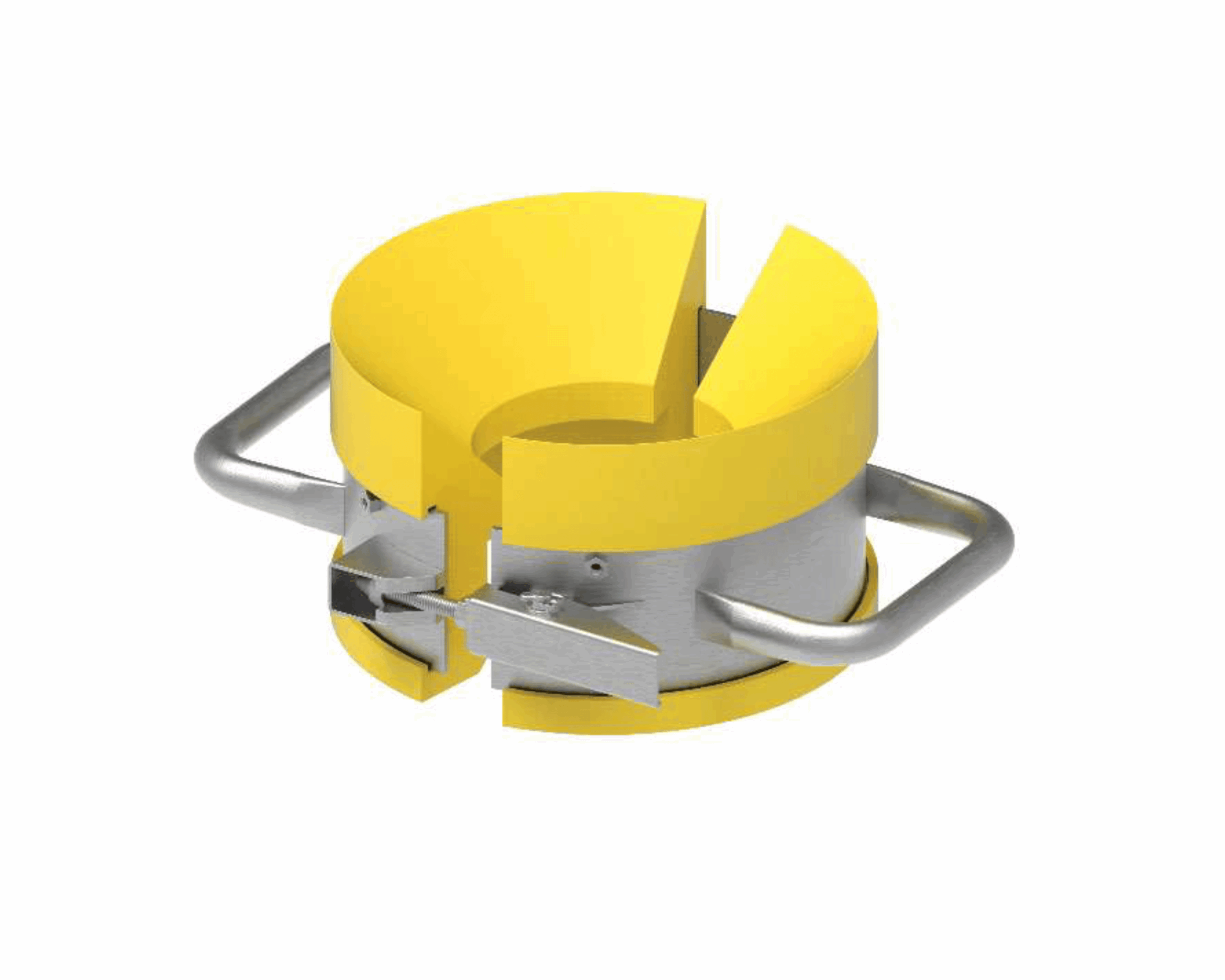

Heavy Duty Stabbing Guide
Standard Rubber Stabbing Guide
The Heavy Duty Type features include:
- Polyurethane Inserts
- Lightweight Aluminum construction
- Corrosion Resistant Hardware
- Adjustable Latch Cam
- Range = 2 3/8” thru 8 ½” Tool joint OD
The Hydril® Rubber Type features include:
- One Piece Rubber Body
- Replaceable Latch & Catch
- Range = 3/4″ thru 4 1/2″
KET Heavy Duty Stabbing Guides
| Part No. | Insert Only/Set | Description | Weight (lbs.) Insert Set | Weight (lbs.) Assembly | |
|---|---|---|---|---|---|
| A02-502 | A02-521 | 1” CS | 1.36 | 4.60 | Add to Quote |
| A02-503 | A02-522 | 1-1/4” CS | 1.22 | 4.45 | Add to Quote |
| A02-504 | A02-523 | 1-1/2” CS | 1.15 | A02-504 A02-523 1-1/2” CS 1.15 4 | Add to Quote |
| A02-505 | A02-524 | 2-1/16” CS | 93 | 4.15 | Add to Quote |
| A02-506 | A02-525 | 2 3/8” CS 4.70# | 4.20 | 8.45 | Add to Quote |
| A02-507 | A02-526 | 2 3/8” PH-6 5.95# | 4.10 | 8.35 | Add to Quote |
| A02-508 | A02-527 | 2 7/8” CS | 3.75 | 7.95 | Add to Quote |
| A02-509 | A02-528 | 2 7/8” PH-6 7.90# | 3.60 | 7.80 | Add to Quote |
| A02-510 | A02-529 | 2 7/8” PH-6 8.70# | 3.55 | 7.80 | Add to Quote |
| A02-512 | A02-531 | 2 7/8” 8RD 6.5# | 3.45 | 7.70 | Add to Quote |
| A02-514 | A02-533 | 3 1/2” CS 9.3# – 10.3# | 3.06 | 7.30 | Add to Quote |
| A02-515 | A02-534 | 3 1/2” PH-6 12.95# | 2.70 | 6.95 | Add to Quote |
| A02-517 | A02-536 | 3 1/2” IF F/ 4 3/4” TJ | 2.18 | 6.45 | Add to Quote |
| A02-517-2 | A02-536-2 | 3 1/2” IF f/ 4 7/8” TJ | 2.06 | 6.30 | Add to Quote |
| A02-517-1 | A02-536-1 | 4” Full Hole | 1.60 | 5.85 | Add to Quote |
| A02-5306 | A02-5356 | XT-39 f/ 4 7/8” TJ | 2.06 | 6.30 | Add to Quote |
| A02-5308 | A02-5358 | XT-39 f/ 4 15/16 TJ | 2.03 | 6.25 | Add to Quote |
| A02-5309 | A02-5359 | XT-43 f/ 5 3/8” TJ | 13.10 | 19.90 | Add to Quote |
| A02-519 | A02-538 | 4 1/2” PH-6 15.50# | 1.70 | 5.95 | Add to Quote |
| A02-517-4 | A02-536-1 | 4-1/2” FH F/5-1/4” TJ | 10.00 | 18.00 | Add to Quote |
| A02-543 | A02-539 | 4 1/2” XH | 11.45 | 18.25 | Add to Quote |
| A02-5310 | A02-5360 | DRILL PIPE f/ 6 1/2” TJ | 10.70 | 17.50 | Add to Quote |
| A02-5311 | A02-5361 | DRILL PIPE f/ 7” TJ | 9.30 | 16.10 | Add to Quote |
| A02-5312 | A02-5362 | DRILL PIPE f/ 7 1/4” TJ | 8.80 | 15.60 | Add to Quote |
| A02-5313 | A02-5363 | DRILL PIPE f/ 8 1/4” TJ | 5.95 | 12.75 | Add to Quote |
| A02-5314 | A02-5364 | DRILL PIPE f/ 8 1/2” TJ | 5.45 | 12.25 | Add to Quote |
| A02-547 | A02-540 | 4 1/2” IF 6 5/8” TJ | 10.55 | 17.35 | Add to Quote |
| A02-545 | A02-541 | 5” PH-6 20.3# | 11.70 | 18.50 | Add to Quote |
| A02-546 | A02-542 | 5 1/2” PH-6 23# | 10.80 | 17.60 | Add to Quote |
KET Standard Rubber Stabbing Guides
Complete
| Part No. | Description | Weight | |
|---|---|---|---|
| A02-101 | 3/4” CS® STABBING GUIDE | 5.00 | Add to Quote |
| A02-102 | 1” CS® STABBING GUIDE | 4.50 | Add to Quote |
| A02-103 | 1 1/4” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-104 | 1 1/2” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-105 | 2 1/16” CS® STABBING GUIDE | 6.50 | Add to Quote |
| A02-106 | 2 3/8” CS® STABBING GUIDE | 6.00 | Add to Quote |
| A02-107 | 2 3/8” PH-6™ STABBING GUIDE | 6.00 | Add to Quote |
| A02-108 | 2 7/8” CS® STABBING GUIDE | 7.00 | Add to Quote |
| A02-109 | 2 7/8” PH-6™ 7.90# STABBING GUIDE | 6.50 | Add to Quote |
| A02-110 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-111 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (LARGE BODY) | 11.00 | Add to Quote |
| A02-112 | 2 7/8” 8RD 6.50# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-113 | 2 7/8” 8RD 6.50# STABBING GUIDE (LARGE BODY) | 10.50 | Add to Quote |
| A02-114 | 3 1/2” CS® 9.30# – 10.30# STABBING GUIDE | 10.00 | Add to Quote |
| A02-115 | 3 1/2” PH-6™ 12.95# STABBING GUIDE | 9.50 | Add to Quote |
| A02-117 | 3 1/2” IF STABBING GUIDE FOR 4 ¾” T.J. | 12.00 | Add to Quote |
| A02-117-3 | 3 1/2” IF STABBING GUIDE FOR 4 7/8” T.J | 12.00 | Add to Quote |
| A02-117-1 | 4” F.H. STABBING GUIDE FOR 5 ¼” T.J. | 12.00 | Add to Quote |
| A02-306 | XT-39 STABBING GUIDE FOR 4 7/8” T.J | 12.00 | Add to Quote |
| A02-308 | XT-39 STABBING GUIDE FOR 4 15/16” T.J. | 12.00 | Add to Quote |
| A02-309 | XT-43 STABBING GUIDE FOR 5 3/8” T.J | 11.50 | Add to Quote |
| A02-119 | 4 1/2” PH-6™ 15.50# STABBING GUIDE | 11.50 | Add to Quote |
| A02-143 | 4 1/2” XH STABBING GUIDE FOR 6 ¼” T.J. | 14.50 | Add to Quote |
| A02-144 | 4 1/2” IF STABBING GUIDE FOR 6 3/8” T.J. | 14.25 | Add to Quote |
| A02-145 | 5” PH-6™ 20.30# STABBING GUIDE | 13.00 | Add to Quote |
| A02-146 | 5 1/2” PH-6™ 23.00# STABBING GUIDE | 13.00 | Add to Quote |
| A02-147 | 4 1/2” IF STABBING GUIDE FOR 6 5/8” T.J. | 14.00 | Add to Quote |
Rubber Only
| Part No. | Description | Weight | |
|---|---|---|---|
| A02-120 | 3/4” CS® STABBING GUIDE | 5.00 | Add to Quote |
| A02-121 | 1” CS® STABBING GUIDE | 4.50 | Add to Quote |
| A02-122 | 1 1/4” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-123 | 1 1/2” CS® STABBING GUIDE | 5.50 | Add to Quote |
| A02-124 | 2 1/16” CS® STABBING GUIDE | 6.50 | Add to Quote |
| A02-125 | 2 3/8” CS® STABBING GUIDE | 6.00 | Add to Quote |
| A02-126 | 2 3/8” PH-6™ STABBING GUIDE | 6.00 | Add to Quote |
| A02-127 | 2 7/8” CS® STABBING GUIDE | 7.00 | Add to Quote |
| A02-128 | 2 7/8” PH-6™ 7.90# STABBING GUIDE | 6.50 | Add to Quote |
| A02-129 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-130 | 2 7/8” PH-6™ 8.70# STABBING GUIDE (LARGE BODY) | 11.00 | Add to Quote |
| A02-131 | 2 7/8” 8RD 6.50# STABBING GUIDE (SMALL BODY) | 6.50 | Add to Quote |
| A02-132 | 2 7/8” 8RD 6.50# STABBING GUIDE (LARGE BODY) | 10.50 | Add to Quote |
| A02-133 | 3 1/2” CS® 9.30# – 10.30# STABBING GUIDE | 10.00 | Add to Quote |
| A02-134 | 3 1/2” PH-6™ 12.95# STABBING GUIDE | 9.50 | Add to Quote |
| A02-136 | 3 1/2” IF STABBING GUIDE FOR 4 ¾” T.J. | 12.00 | Add to Quote |
| A02-357 | 3 1/2” IF STABBING GUIDE FOR 4 7/8” T.J. | 12.00 | Add to Quote |
| A02-136-1 | 4” F.H. STABBING GUIDE FOR 5 ¼” T.J | 12.00 | Add to Quote |
| A02-356 | XT-39 STABBING GUIDE FOR 4 7/8” T.J. | 12.00 | Add to Quote |
| A02-358 | XT-39 STABBING GUIDE FOR 4 15/16” T.J. | 12.00 | Add to Quote |
| A02-359 | XT-43 STABBING GUIDE FOR 5 3/8” T.J. | 11.50 | Add to Quote |
| A02-138 | 4 1/2” PH-6™ 15.50# STABBING GUIDE | 11.50 | Add to Quote |
| A02-139 | 4 1/2” XH STABBING GUIDE FOR 6 ¼” T.J. | 14.50 | Add to Quote |
| A02-148 | 4 1/2” IF STABBING GUIDE FOR 6 3/8” T.J. | 14.25 | Add to Quote |
| A02-141 | 5” PH-6™ 20.30# STABBING GUIDE | 13.00 | Add to Quote |
| A02-142 | 5 1/2” PH-6™ 23.00# STABBING GUIDE | 13.00 | Add to Quote |
| A02-140 | 4 1/2” IF STABBING GUIDE FOR 6 5/8” T.J. | 14.00 | Add to Quote |
