Rotary Slips

  • Product Quote Request
    Select Product(s) from Any Product Page to Build Custom Quote Request Below.

  • Contact Information

  • This field is for validation purposes and should be left unchanged.

KET DU, SDML, SDXL and Type B Rotary Slips are designed to be used when adding or removing joints from the drill string. These drill pipe slips are manufactured from heat-treated alloy steel, increasing strength and resistance to wear. The slips are machined, by strict quality control procedures, for use in API standard bowls.

All KET slips have an API taper of 4″/ft on the diameter, are load rated, and equipped with safety flex handles.

Our slips are designed and precision-machined to meet and exceed API Standards, with the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.

*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.

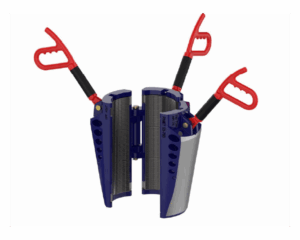

See KET’s Full Line of Rotary Slips

DU Type Drill Pipe Slips

DU Type

KET offers both the DU Regular and DU Long Rotary Slips.  These slips are designed for long trouble-free service. Manufactured from heat-treated, alloy steel, these slips will perform and endure.

In addition, both DU slips are for use in API tapered bowls. The DU Long has a 16” long gripping surface and is designed for deeper wells and heavier drill strings.

Part No Slip Body Size Type WT
A03-114-F 4 1/2″ DU/Reg 130.00 Add to Quote
A03-115-F 4 1/2″ DU/Long 150.00 Add to Quote#
A03-117-F 5 1/2″ DU/Long 162.00 Add to Quote
A03-119-F 7″ SDU/Long 192.00 Add to Quote

Replacement Parts for DU Rotary Slips

Part No Item# Description Spares #Req REF# WT
 A03-105  1  Hinge Pin  2  2  7613-A-12  1.25  Add to Quote
 A03-103  2  DU Long Liner Key  3  3  7613-A-67  1.75  Add to Quote
 A03-104  3  DU Reg. Liner Key  3  3  7613-A-52  1.50  Add to Quote
 A03-106  4  Front Handle Pin  2  2  7613-B-12  .25  Add to Quote
 A03-107  5  Rear Handle Pin  1  1  7613-C-12  .38  Add to Quote
 A03-108  6  Hinge Spring Assy.  2  2  7613-211  1.25  Add to Quote
 100200-R  7  Safety Flex Handle (Rear)  1  1  7613-5190  5.00  Add to Quote
 100200-F  7  Safety Flex Handle (Front)  2  2  7613-5190  5.00  Add to Quote

*RECOMMENDED SPARE PARTS FOR 1 YEAR OPERATION


See Full Line of DU Rotary Type Slips Inserts and TS-100 Spider Slips Inserts- Full Face Inserts



Inserts for 4-1/2″ DU Rotary Type Slips and 4-1/2″ TS-100 Spider Slips – Full Face Inserts

Part No Description Ref # WT
A03-210 4 1/2″ x 4 1/2″ 7613-A-81 .75 Add to Quote
A03-213 4 1/2″ x  4 3/8″ N/A .80 Add to Quote
A03-216 4 1/2″ x 4 1/4″ N/A .85 Add to Quote
A03-219 4 1/2″ x 4 1/8″ N/A .90 Add to Quote
A03-221 4 1/2″ x 4″ 7613-FF-81 1.00 Add to Quote
A03-224 4 1/2″ x 3 3/4″ N/A 1.75 Add to Quote
A03-227 4 1/2″- 3 1/2″ 7613-C-82 1.50 Add to Quote
A03-229 4 1/2″ x 3 3/8″ N/A 1.65 Add to Quote
A03-228 4 1/2″ x 3 1/4″ N/A 1.75 Add to Quote
A03-230 4 1/2″ x 3 1/8″ N/A 1.85 Add to Quote
A03-231 4 1/2″ x 3″ N/A 1.90 Add to Quote
A03-233 4 1/2″ x 2 7/8″ 7613-B-82 2.00 Add to Quote
A03-236 4 1/2″ x 2 3/8″ 7613-A-82 2.25 Add to Quote
A03-237 4 1/2″ x 2 1/16″ 7613-M-82 2.50 Add to Quote
A03-238 4 1/2″ x 1.900″ 7613-H-82 2.75 Add to Quote
A03-239 4 1/2″ x 1.660″ N/A 2.80 Add to Quote

Inserts for 4-1/2″ DU Rotary Type Slips and 4-1/2″ TS-100 Spider Slips – Regular Inserts

Part No Description Ref # WT
A03-120 4 1/2″ x 4 1/2″ 7613-A-81 .75 Add to Quote
A03-121 4 1/2″ x 4″ 7613-FF-81 1.00 Add to Quote
A03-122 4 1/2″- 3 1/2″ 7613-C-82 1.50 Add to Quote
A03-123 4 1/2″ x 2 7/8″ 7613-B-82 2.00 Add to Quote
A03-124 4 1/2″ x 2 3/8″ 7613-A-82 2.25 Add to Quote
A03-125 4 1/2″ x 2 1/16″ 7613-M-82 2.50 Add to Quote
A03-126 4 1/2″ x 1.900″ 7613-H-82 2.75 Add to Quote
A03-127 4 1/2″ x 1.660″ N/A 2.80 Add to Quote

Inserts for 5-1/2″ DU Rotary Type Slips and 5-1/2″ TS-100 Spider Slips – Full Face Inserts

Part No Description Ref # WT
A03-241 5 1/2″ x 5 3/4″ N/A  .85  Add to Quote
A03-240 5 1/2″ x 5 1/2″ 7613-H-81  1.00  Add to Quote
A03-243 5 1/2″ x 5″ 7613-G-81  1.50  Add to Quote
A03-246 5 1/2″ x 4 3/4″ N/A  1.75  Add to Quote
A03-249 5 1/2″ x 4 1/2″ 7613-E-81  2.00  Add to Quote
A03-247 5 1/2″ x 4 3/8″ N/A  2.10  Add to Quote
A03-252 5 1/2″ x 4 1/4″ N/A  2.15  Add to Quote
A03-255 5 1/2″ x 4 1/8″ N/A  2.20  Add to Quote
A03-258 5 1/2″ x 4″ N/A  2.25  Add to Quote
A03-261 5 1/2″ x 3 3/4″ N/A  2.28  Add to Quote
A03-264 5 1/2″ x 3 1/2″ 7613-E-82  2.31  Add to Quote
A03-266 5 1/2″ x 3 1/4″ N/A  2.38  Add to Quote
A03-268 5 1/2″ x 3 1/8″ N/A  2.45  Add to Quote
A03-270 5 1/2″ x 3″ N/A  2.52  Add to Quote
A03-275 5 1/2″ x 2 7/8″ N/A  2.60  Add to Quote
A03-277 5 1/2″ x 2 3/8″ N/A  2.80  Add to Quote

Inserts for 5-1/2″ DU Rotary Type Slips and 5-1/2″ TS-100 Spider Slips – Regular Inserts

Part No Description Ref # WT
A03-130 5 1/2″ x 5 1/2″ 7613-H-81  1.00  Add to Quote
A03-131 5 1/2″ x 5″ 7613-G-81  1.50  Add to Quote
A03-132 5 1/2″ x 4 1/2″ 7613-E-81  2.00  Add to Quote
A03-133 5 1/2″ x 4″ N/A  2.25  Add to Quote
A03-134 5 1/2″ x 3 1/2″ 7613-E-82  2.31  Add to Quote

Inserts for 7″ SDU Rotary Type Slips

Part No Description Ref # WT
A03-140 7″ x 7″ 7613-EE-81 1.25 Add to Quote
A03-141 7 x 6 5/8″ 7613-DD-81 1.75 Add to Quote
A03-146 7″ x 5 7/8″ N/A 3.00 Add to Quote
A03-142 7″ x 5 1/2″ 7613-Z-81 3.25 Add to Quote
A03-143 7″ x 5″ 7613-Y-81 3.75 Add to Quote
A03-144 7″ x 4 1/2″ 7613-W-81 4.00 Add to Quote
SD Type Slip

SD Type

All KET SDML and SDXL rotary slips are designed for quality performance. Manufactured from heat-treated, alloy steel, these slips will endure. In addition, they are precision-machined by strict quality control procedures for use in API standard bowls.

Lastly, We have added SLD spring grooves, which allow our slip to easily be retrofitted for the Keystone Energy Tools (SLD) Slip Lifting Device.

SD Type Rotary Slips Complete

Part No Slip Body Size Type REF Wt
A23-100-F 3 1/2″ Body Only SDML 15522-1 153.00 Add to Quote
A24-200-F 4 1/2″ Body Only SDXL 15562 182.00 Add to Quote
A24-100-F 5″ Body Only SDXL 15566 193.00 Add to Quote
A24-300-F 5 1/2″ Body Only SDXL 15570 190.00 Add to Quote
A23-135-F 3 1/2″ x 3 1/2″ SDML 15522 180.00 Add to Quote
A23-127-F 3 1/2″ x 2 7/8″ SDML 15523 188.00 Add to Quote
A23-123-F 3 1/2″ x 2 3/8″ SDML 15524 193.00 Add to Quote
A24-245-F 4 1/2″ x 4 1/2″ SDXL 15513 205.00 Add to Quote
A24-240-F 4 1/2″ x 4″ SDXL 15514 219.00 Add to Quote
A24-235-F 4 1/2″ x 3 1/2″ SDXL 15515 229.00 Add to Quote
A24-150-F 5″ x 5″ SDXL 15516 213.00 Add to Quote
A24-145-F 5″ x 4 1/2″ SDXL 15517 227.00 Add to Quote
A24-140-F 5″ x 4″ SDXL 15518 237.00 Add to Quote
A24-355-F 5 1/2″ x 5 1/2″ SDXL 15519 210.00 Add to Quote
A24-350-F 5 1/2″ x 5″ SDXL 15520 224.00 Add to Quote
A24-345-F 5 1/2″ x 4 1/2″ SDXL 15521 234.00 Add to Quote

Replacement Parts for SD Type Rotary Slips

Part No Item Description Size #Req Ref# WT Spares
A14-105 1 Handle Pin w/Washer & Cotter All 3 3769 .50 3 Add to Quote
A23-104 2 Insert Retainer Ring 3 1/2″ 3 3738 1.00 3 Add to Quote
A23-105 2 Insert Retainer Ring 4 1/2″ 3 3739 1.00 3 Add to Quote
A23-106 2 Insert Retainer Ring 5″ 3 3741 1.00 3 Add to Quote
A23-107 2 Insert Retainer Ring 5 1/2″ 3 3740 1.00 3 Add to Quote
A23-108 2 Insert Retainer Ring 7″ 3 3742 1.00 3 Add to Quote
A23-109 3 Insert Retainer Screw & Nut All 6 3737 .02 12 Add to Quote
A23-110 4 Insert See Chart Add to Quote
A23-111 5 Hinge Pin w/ Cotter All 2 2192 1.20 2 Add to Quote
102100 6 Safety Flex Handle All 3 N/A 4.0 3 Add to Quote

Inserts for SDML and SDXL Slips

Part No Size Type Ref # WT/Set
A23-155 3 1/2″ x 3 1/2″ Basic 2162 10.00 Add to Quote
A23-156 3 1/2″ x 2 7/8″ Reducer 2161 15.00 Add to Quote
A23-157 3 1/2″ x 2 3/8″ Reducer 2160 20.00 Add to Quote
A23-158 4 1/2″ x 4 1/2″ Basic 2165 15.00/18.00 Add to Quote
A23-159 4 1/2″ x 4″ Reducer 2164 23.00/27.00 Add to Quote
A23-160 4 1/2″ x 3 1/2″ Reducer 2163 30.00/36.00 Add to Quote
A23-161 5″ x 5″ Basic 2167 15.00/18.00 Add to Quote
A23-162 5″ x 4 1/2″ Reducer 2166 23.00/27.00 Add to Quote
A23-163 5″ x 4″ Reducer 2168 30.00/36.00 Add to Quote
A23-164 5 1/2″ x 5 1/2″ Basic 2170 15.00/18.00 Add to Quote
A23-165 5 1/2″ x 5″ Reducer 2169 23.00/27.00 Add to Quote
A23-163 5 1/2″ x 4 1/2″ Reducer 2168 30.00/36.00 Add to Quote
A23-166 7″ x 7″ Basic 2173 20.00/26.00 Add to Quote
A23-167 7″ x 6 5/8″ Reducer 2172 25.00/41.00 Add to Quote

“SDXL” SLIPS EXCEPT 7” TAKE 54 INSERTS
3 1/2” “SDML “SLIPS TAKE 30 INSERTS
ALL OTHER “SDML” SLIPS EXCEPT 7” TAKE 45 INSERTS
7” “SDXL” SLIPS TAKE 72 INSERTS
7” “SDML” SLIPS TAKE 60 INSERTS

B Type Slips

Type B

The KET Type “B” Rotary Slip is designed for light to medium-well drilling operations.

In addition, the Type B slips are made of alloy steel and heat-treated for strength and resistance to wear. Its standard size ranges from 2 1/16” to 4 1/2” and is used in API tapered bowls.

Type B Rotary Slips

Part No Description Wt
A19-450-F KET 4-1/2″ Type B Rotary Slip Complete w/ Flex Handles 134.00 Add to Quote

Replacement Parts for Type B Rotary Slips

Part No Item # Description Ref # #Req WT
A19-101 1 Hinge Pin 737-000-0500 2 1.12 Add to Quote
A19-103 2 Handle Pin 737-000-0400 3 .25 Add to Quote
A19-106 3 Insert Ret. Pin 737-000-0600 3 .30 Add to Quote
100050 4 Flex Handle N/A 3 5.00 Add to Quote
A19-250 5 4 1/2″ x 4 1/2″ 757-044-0144 18/24 .85 Add to Quote
A19-251 5 4 1/2″ x 4″ 757-044-0140 18/24 1.20 Add to Quote
A19-252 5 4 1/2″ x 3 1/2″ 757-044-0134 18/24 1.75 Add to Quote
A19-253 5 4 1/2″ x 2 7/8″ 757-044-0127 18/24 2.00 Add to Quote
A19-254 5 4 1/2″ x 2 3/8″ 757-044-0123 18/24 2.15 Add to Quote
A19-255 5 4 1/2″ x 2 1/16″ N/A 18/24 2.45 Add to Quote
