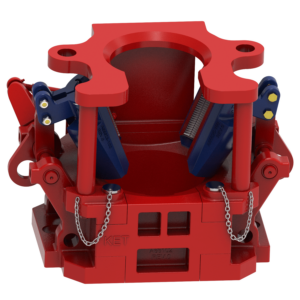

Type E Air Spider

Keystone is a leading manufacturer of Type “E” Air Spiders for the oil and gas industry, offering models rated for 175 tons (350,000 lbs.) and 250 tons (500,000 lbs.). These pneumatic-operated spiders are designed to support tubing strings during production tubular running or retrieval operations, with a size range from 2 3/8″ to 7 5/8″.

The Type “E” Air Spider mounts securely to the rig floor or the top of the stack and uses 90–120 psi air pressure to actuate its lift arms, crankshaft, and link system, enabling quick and secure slip engagement. Its body design allows the passage of tubulars up to 7 5/8” in diameter without removal, accommodating tubing packers and other downhole tools.

We understand the critical requirements of the oil and gas industry and the need for high-quality tools and parts.

Our equipment is manufactured from quality materials acquired from trusted vendors and are designed and precision-machined to meet and exceed all API Standards,

With the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.

*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.

See KET’s Full Line of Type E Air Spider Assemblies
