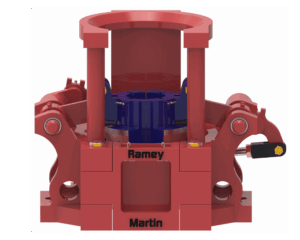

KET Type C Air Spiders
KET offers the Type C Air Spider, load rated for 125 tons in accordance with API Spec 7K. The Type C Air Spider is designed to support a static string of tubing when raised or lowered from the well. Operated by pneumatic pressure, the cylinder drives a mechanical lift assembly that raises and lowers the slip inserts into the spider bowl.
This model can handle pipe sizes from 1.315” through 5 1/2” and is engineered to enhance rig floor safety by reducing the number of personnel needed during slip operations. It can be operated directly from the driller’s console or from a safe distance, improving efficiency while reducing accidents and fatigue.
We understand the critical requirements of the oil and gas industry and the need for high-quality tools and parts.
Our equipment is manufactured from quality materials acquired from trusted vendors and are designed and precision-machined to meet and exceed all API Standards,
With the API monogram stamped on our equipment, you can be sure you are getting high-grade equipment at a competitive price, made in the USA.
*Upon purchase, customers receive proof of load test, MPI, and material and heat-treatment certifications included with their data packets.
See KET’s Full Line of Type C Air Spider Assemblies
Type C 125-Ton Air Spider
| Model | Load Rating | Tubular Range | WT (lbs.) | Operating Pressure | |
|---|---|---|---|---|---|
| 34-551 | 125 Tons | 1.315” – 5.5” | 375 lbs. | 70 – 100 psi | Add to Quote |
Body Type C Inserts
| Part No. | Pipe Size | Qty (Set of 4) | |
|---|---|---|---|
| 34-205 | 3 1/2” x 3 1/2” | 1 | Add to Quote |
| 34-206 | 3 1/2” x 2 7/8” | 1 | Add to Quote |
| 34-207 | 3 1/2” x 2 3/8” | 1 | Add to Quote |
| 34-228 | 3 1/2” x 2 1/16” | 1 | Add to Quote |
| 34-229 | 3 1/2” x 1 1/2” (1.900) | 1 | Add to Quote |
| 34-230 | 3 1/2” x 1 1/4” (1.660) | 1 | Add to Quote |
| 34-231 | 3 1/2” x 1” (1.315) | 1 | Add to Quote |
| 34-209 | 4 1/2” x 4 1/2” | 1 | Add to Quote |
| 34-210 | 4 1/2” x 4” | 1 | Add to Quote |
| 34-211 | 4 1/2” x 3 1/2” | 1 | Add to Quote |
Replacement Parts for Type C 125-Ton Air Spider Main Component
| # | Part No | Description | QTY | Spares | |
|---|---|---|---|---|---|
| 1 | 34-601 | Body Only | 1 | Add to Quote | |
| 2 | 34-602 | Gate | 1 | Add to Quote | |
| 3 | 34-603 | Link | 1 | Add to Quote | |
| 4 | 34-604 | Shaft (LH Crank) | 1 | Add to Quote | |
| 5 | 34-605 | Shaft (RH Crank) | 1 | Add to Quote | |
| 6 | 34-606 | Lift Arm | 1 | Add to Quote | |
| 7 | 34-607 | Yoke | 1 | 1 | Add to Quote |
| 8 | 34-608 | Safety Guard | 1 | Add to Quote | |
| 9 | 34-609 | Link Grease Fitting | 2 | 2 | Add to Quote |
| 10 | 34-610 | Cylinder Bolt | 1 | 1 | Add to Quote |
| 11 | 34-611 | Cylinder Yoke Bolt | 1 | 1 | Add to Quote |
| 12 | 34-612 | Cylinder Nut | 2 | 2 | Add to Quote |
| 13 | 34-613 | Safety Guard Bolt | 4 | 4 | Add to Quote |
| 13a | 34-613-LW | Safety Guard Bolt Lock Washer | 4 | 4 | Add to Quote |
| 14 | 34-614 | Door Pin w/ Chain | 2 | Add to Quote |
